Large Size Screen Printing Machine

This product has been discontinued and removed from our shelves.

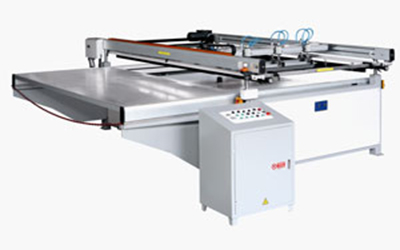

Large Size Screen Printing Machine

Tip: the machinery can be customized as per the customer's needs.
Our large size screen printing machine is expert at the single color or multi color printing of large format outdoor advertising poster, flex banner, nylon fabric, decorative picture, glass, leather, metal. Plastic, etc..

Technical Parameters
Model JB-PY2400 JB-PY3000
Max.Printing Size(mm) 1200×2400 1300×2600
Work table size(mm) 1400×2700 1500×3000
Speed(sheet/h) 220 200
Thickness of printing stock(mm) ≤ 50 ≤ 50
Net-off height(mm) 0~50 0~65
Power 3P 380V 6.65KW 3P 380V 6.65KW
Weigth (Kg) 1600 1800
Overall dimension(mm) 3540×2800×1200 4150×2800×1220

Our large format screen printer is applied with the four-column elevating mechanical structure. The whole screen frame and printing machinery can be elevated thorough smoothly and reposefully.

The movement of the printing platform can be stepless speed adjustable and the linear guide rail generates no vibration during the movement to ensure the precise positioning.

The screen gripper and the register device of our product both are integral designed and they register the screen through three point contact which is quite convenient and effective.

Our printer can ensure the absolute synchronized drive of screen and segregator and printing part to ensure the screen keep horizontal when recover the ink. We designed the air cylinder controller to handle the movement exchanging of ink scraping and reclaiming.

The printing and ink reclaiming work strokes are all under the control of inductive switch. In addition, the whole procedure of printing is arranged by high performance PLC and we designed a security system for our printer to ensure the barrier free running.

Jinbao is a professional large size screen printing machine manufacturer and supplier in China. We provide a vast array of products, including vertical screen printing machine, 3/4 automatic screen printing press, mini electric screen printer, and more.
