Screen Printing Plate Making Equipment

Screen printing plate making equipment is indispensable in the printing industry. Its performance directly determines the printing efficiency and quality, which is why we offer a variety of screen printing plate production equipment, including screen stretchers, screen coating machines, printing exposure machines and drying containers.
Computer to Screen Plate Machine
    1. TC-1300CTS Computer to Screen Plate Machine

    2. The vertical accuracy of the two axes is within 5um to ensure system stability.

      The computer to screen plate machine uses a motion system from a German brand, achieving a positioning accuracy of up to 1um.

      • Image resolution: 1270dpi, 2540dpi
      • Repeat accuracy: ±5um
      • Size deviation: ±0.01%
      • Working humidity: 40-70%
      Read more
Computer-to-Plate Making Machine
    1. Computer-to-Plate Making Machine (Silk Screen Printing Version)

    2. Equipped with a 2-watt UV laser and computer system, the JB-1300CTS plate making machines will automatically complete screen printing plate production, with a resolution up to 1200dpi.

      • Max. Image Size: 750mm×1050mm
      • Output power: 2W@80kHz
      • Operating Voltage: 24V
      • Marking speed: 3.0 m/s
      Read more
Screen Stretching Machine
Screen Coating Machine

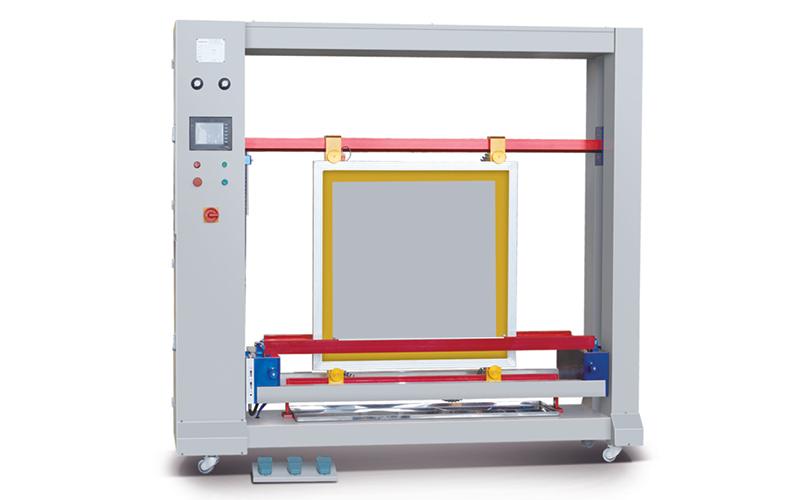

    1. Screen Coating Machine

    2. The JB-1100T automatic screen coating machines uses high-precision photographic emulsion, which is particularly suitable for large areas of screen coating. The maximum frame size reaches up to 1200mm×1300mm.

      • Coating speed: 0-99mm/s
      • Power: 0.41kW
      • Air pressure: Above 0.4MPa
      • Weight: About 400kg
      Read more
Printing Plate Exposure Machine
Automatic Decoating & Developing Machine
    1. Automatic Decoating & Developing Machine

    2. The automatic de-coating & developing machine has two modes: screen de-coating and screen developing. Users can regulate the washing pressure, and the equipment is capable of cleaning a variety of screen printing plates, making it suitable for degreasing, developing, de-coating and water-based ink cleaning.

      • Operation speed: About 3min/pcs
      • Power: 8kW
      • Air pressure: 0.55-0.7MPa
      • Overall dimension: 2140×1540×2450mm³
      Read more
Drying Container
    1. Drying Container

    2. The horizontal drying container carries out a pre-drying function through the use chemical steam, and is primarily used for curing ink and paint.

      • Max. frame size: 1000×1200mm²
      • Heat pipe power: 4.2kw
      • Power supply: 220V/50HZ
      • Temperature range: Room temperature-50℃
      Read more
Jinbao Machinery, established in 1997, specializes in providing printing machinery such as automatic screen printing machines and other auxiliary printing machines. With more than 20 years of experience in the design and production of screen printing machinery and a fully equipped factory outfitted with advanced processing equipment, testing equipment, and computer design systems, our printing equipment is widely known for its outstanding performance. We also provide customers with ODM and OEM custom services.
