JB-1050SG

Automatic Paper Stacker

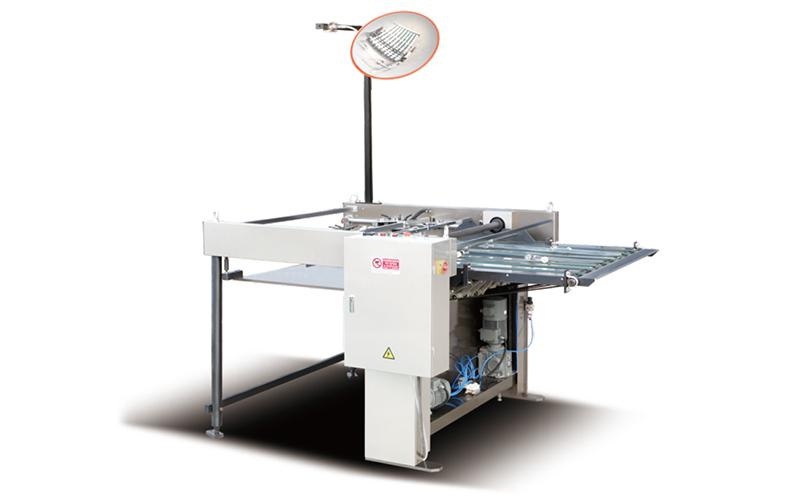

JB-1050SG Automatic Paper Stacker
Request a Quote
Application

The JB-1050SG automatic paper stacker continuously stack papers with a speed reaching up to 4,200 pcs/h.

It can be paired with other JB series screen printing machines, including the JB-1050 or JB1050AG nonstop screen printing machines. This significantly improves the printing efficiency.

Specification
Model JB-1050SG
Max. paper size 1100×750 mm²
Min. paper size 350×250 mm²
Pile height 900mm
Top speed 4200 p/h
Power supply 3P~380V/50Hz
Power 0.92KW
Weight 700 Kg
Overall dimension 2700×2050×2750 mm³
Features
  • The redesigned paper feeding section allows for nonstop stacking. Together with the printing unit, printing and stacking runs continuously, thereby improving efficiency.
  • The stable and reliable stacking detection and height detection devices protect the machine and products from damage, all while making operation safer and easier.
  • The preset counter allows the user to easily conduct manual flag insertion or install automatic flag insertion equipment.
