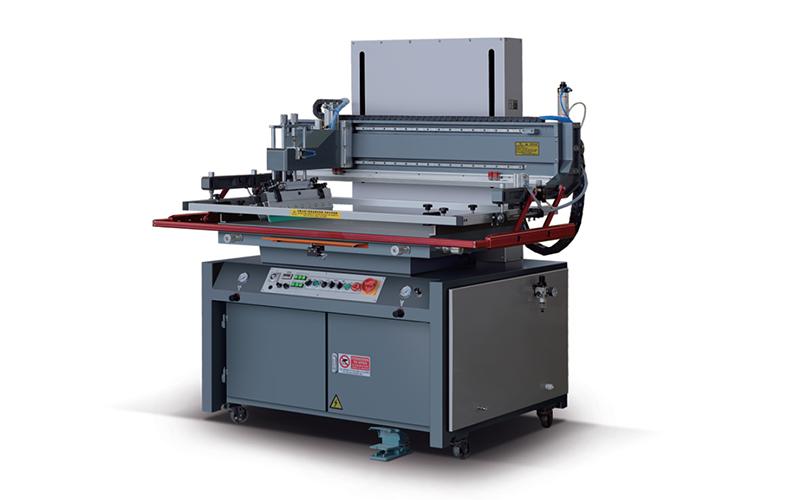

Horizontal Lift Screen Printing Machine

Application

The printing head of the horizontal lift screen printing machine can move up and down smoothly. Horizontal lift screen printing machines are specially designed for deformation resistant substrates, with a wide printable range, including screen printing on paper, plastics, glass, porcelain, metal, textile, leather and other flat objects, especially suitable for the printing of electronic PCB, FPC, PCB liquid photosensitive emulsion and SMT solder paste.

Request a Quote

Specification

Model	JB-750II	JB-960II	JB-1280II
Max. printing area	500×700mm²	600×900mm²	800×1200mm²
Max. dimension of the frame	800×1160mm²	900×1360mm²	1100×1660mm²
Dimension of the workbench	600×900mm²	700×1100mm²	900×1400mm²
Print thickness	Below 40mm	Below 40mm	Below 40mm
Height of instant off-network	0-20mm	0-20mm	0-20mm
Printing speed	1200pcs/h	1100pcs/h	900pcs/h
Weight	600kg	750kg	900kg
Overall dimension	1500×1080×1700mm³	1700×1180×1700mm³	2000×1380×1700mm³
Printing motor power	0.2KW	0.4KW	0.4KW
Printing shaft power	1.5KW	2.2KW	2.2KW
Blower power	0.75KW	1.1KW	1.5KW
Power	2.45KW	3.7KW	4.1KW
Power supply	3P,380V,50Hz

Features

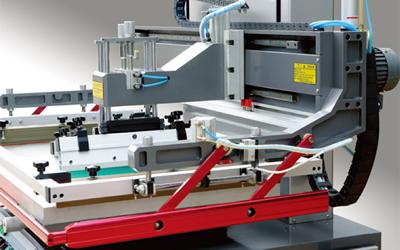

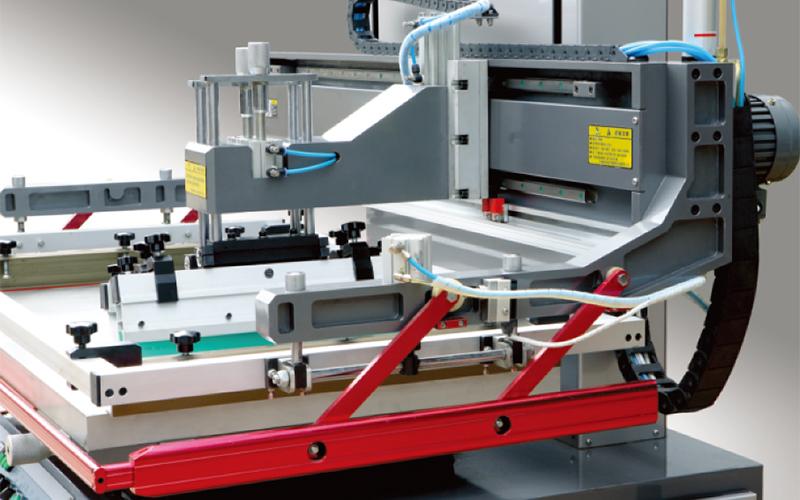

An integrated decelerate motor horizontally lifts and lowers the printing head fast and smoothly.
The guide rail and synchronous belt of Italian brand MEGADYNE enable more precise and stable variable frequency drive printing.
The air-liquid convertor cooperates with the off-network cylinder to ensure smooth and stable off-network process.
The adjustable workbench is separated from the locking device, which can eliminate the locking error.

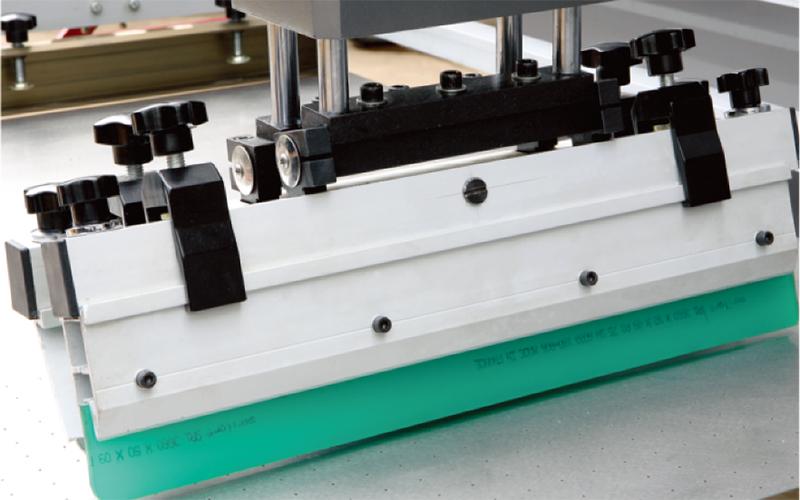

One of the dual-cylinders control the squeegee and the other controls the flood coater, which ensure high and even printing pressure.

Samples
