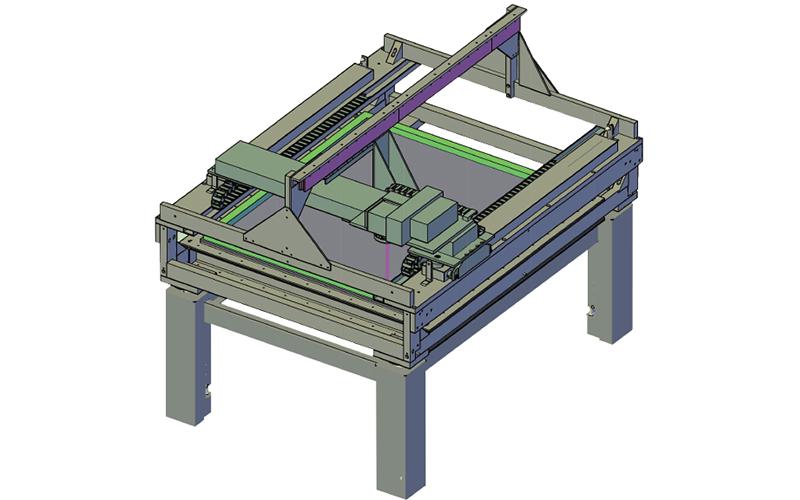

Computer-to-Plate Making Machine (Silk Screen Printing Version)
Equipped with a 2-watt UV laser and computer system, the JB-1300CTS plate making machines will automatically complete screen printing plate production, with a resolution up to 1200dpi.
Output
| Max. Screen Frame Size | 1300mm×1200mm |
| Screen Frame Thickness | 40mm |
| Max. Image Size | 750mm×1050mm |
| Wavelength | 355nm, 2watt |
| Pulse energy | 25μj@80kHz |
| Output power | 2W@80kHz |
| Pulse width | ＜10ns@80kHz |
| Pulse energy noise | (rms)＜3% |
| Long term stability | (rms)＜±2% |
Operation condition
| Warm-up Time | Less than 10min |
| Operating Voltage | 24V |
| Maximum Inrush Current | Below 9A |
Laser scanning
| Marking speed | 3.0 m/s |
| Power requirements | DC15V, max.3A |
| Operating temperature | 15℃-35°C |
| Typical air requirements | clean, filtered air 20L/min |
| Environment Temperature | 15℃~35℃ |
| Environment Humidity | 40%~50% |
| Environment Cleanliness | ISO Class 7 |
Beam Characteristics
| Special Mode | ＜1.3, TEM |
Laser Head
| Operating temperature | 18℃-40℃ |
| Relative humidity | ＜80% |
| Dew point temperature | ＜20℃ |
| Screen Frame Thickness | 40mm |
| Dimension | 240×95×94 mm³ |
Dimension
| Dimension | 1848×1443×1503mm |
| Weight | 400kg |
