JB-145C

Servo Screen Printing Press

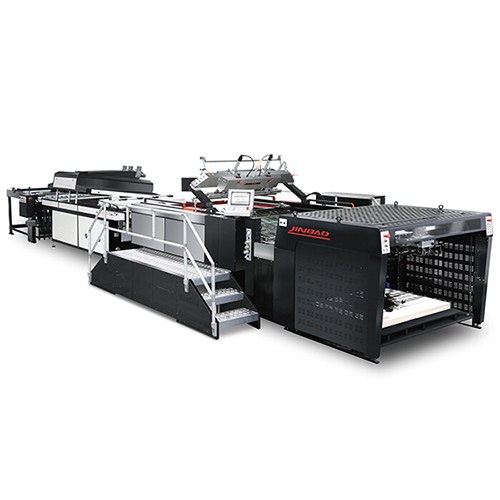

JB-145C Servo Screen Printing Press
Request a Quote
Technical parameters
Max. Substrate size 1450X1050mm
Min. Substrate size 700X460mm
Max. Printing size 1450X1040mm
Screen size 1440X1710mm
Substrate thickness 128-500g/m2
Printing speed 500-3000pcs/h
Installed power 3P 380V 50Hz 31kw
Total weight 6800kg
Outline size 5050x3970x2500mm
Features
    1. Detachable screen frame structure
    2. Detachable screen frame structure

      The screen frame can be detached and pulled out from the transmission part, making it convenient to adjust the registration of the printed matter and the feeding, safer and efficient cleaning of the roller and mesh frame. The automatic detection system of the electric eye ensures the reliability of the operation, avoiding the breakage of the rack or damage to the main transmission.

    1. Nylon rack
    2. Nylon rack

      The screen frame and the roller move in synchronization, driven by the combination of nylon rack and steel gear. This ensures that there is no backlash or vibration between the gear and the rack during operation, as well as accurate registration, low wear, and extended equipment life service.

    1. German RKS high-tech precision carbon fiber squeegee
    2. German RKS high-tech precision carbon fiber squeegee

      This squeegee offers extraordinary standardization of printing quality, capable of reproducing the required quality consistently, with optimal blade flatness ensuring stable ink layers, quick setup, excellent solvent resistance and wear resistance, prolonging the life service of the squeegee and consumables.

    1. Super-precision pneumatic squeegee system
    2. Super-precision pneumatic squeegee system

      A heavy-duty precision squeegee system integrates various advanced technologies such as electronic, pneumatic, hydraulic, mechanical, and optical fibers. It allows presetting of blade pressure, controlling blade position. Once the squeegee pressure is calibrated, it can be preset to remain constant, ensuring precise control of ink layer thickness and guaranteeing consistent perfection in printed products.

    1. Servo motor
    2. Servo motor

      The servo motor offers high transmission accuracy, simplified structure, wide range of transmission ratio, convenient adjustment, etc.
