Screen Plate Washing Machine

Screen Plate Washing Machine
Application

The TC-1300X screen printing washing machine uses an organic solvent and water-based solvent for screen plate cleaning. With the use of a screen plate washing machine, users can easily finish cleaning and drying processes with just the push of a button.

Request a Quote
Process
  • Feeding
  • Start-up
  • Water spray and developing/air drying
  • Finish cleaning/automatic ceasing
  • Unloading
Types of screen developing techniques
Technique Media Liquid temperature Heating Filtration precision Spray pressure(MPa)
Water spray and developing Water Normal Null 5um 0.3-0.6
Air drying high-pressure air pump or compressed air 10000 level Null
Specification
Model TC-1300TX
Max. frame size 1170×1300mm²
Air pressure 0.55-0.7MPa
Air consumption φ16mm, 500-800L/Min
Overall dimension 1640×1140×2560³
Feature
  • The washing machine uses high-pressure air as the energy source, and is controlled using a pneumatic logic system.
  • The 7-level filtration mechanism ensures the recycling and reuse of the cleaning liquid, which reduces the cleaning liquid consumption.
  • The safety interlock mechanism and the sealing design ensure a safe production process and environment.
  • The adjustable cleaning pressure ensures the stability of the screen meshes, thus extending the mesh lifespan.
  • The automatic cleaning frequency counting allows users to quickly refill the equipment, thus ensuring a high cleaning quality.

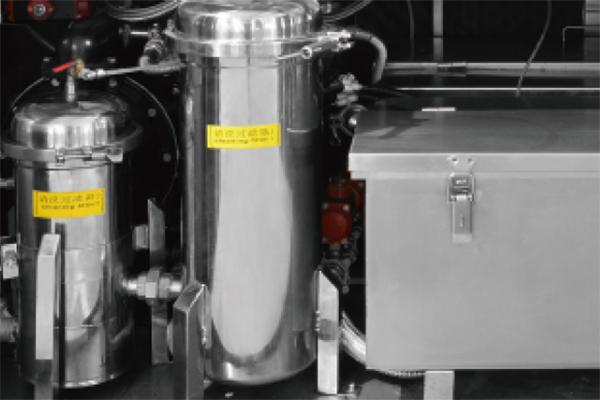

  • Purifying system Purifying system

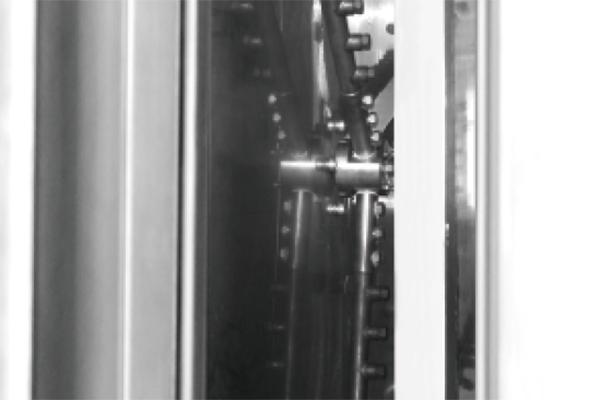

  • Cleaning device Cleaning device
