Fully Automatic Screen Printing Machine

Jinbao's fully automatic screen printing machines are made from high-quality steel and castings, featuring complete specifications and abundant functions, which can be widely applied to packing boxes, decorative paper, stickers, anti-counterfeit labels, commercial posters and graphic printing.

Fully AutomaticStop Cylinder Screen Printing Machine

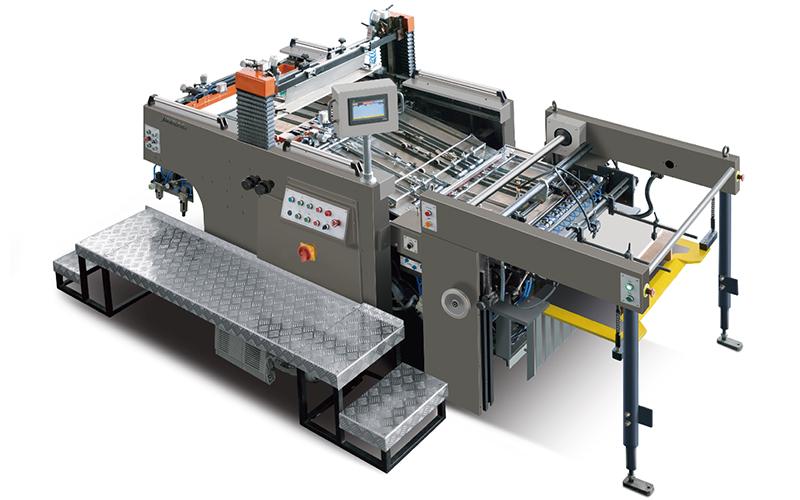

2. JB-720A/800A/1020A Fully Automatic Stop Cylinder Screen Printing Machine
  Printing speed: 1000-3600pcs/h
  Installed power: 10.5KW
  Total weight: 3500kg
  Read more
2. JB-1050A Full Automatic Stop Cylinder Screen Printing Machine
  Printing speed: 800-4000pcs/h
  Installed power: 10.7KW
  Total weight: 5600kg
  Read more

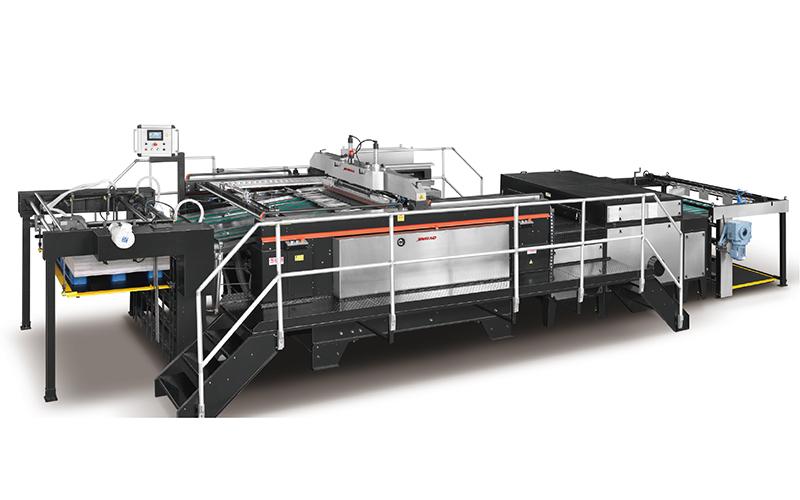

2. JB-1450A/1880A Fully Automatic Stop Cylinder Screen Printing Equipment
  Printing speed: 200-2000sph
  Installed power: 20.5kw
  Total weight: 9000kg
  Read more
2. JS-720 Screen Printing Equipment
  Printing speed: 400-2200 pcs/h
  Installed power: 7kW
  Weight: 3800kg
  Read more
2. JB-720AQ Automatic Screen Printing Equipment
  Printing speed: 400-2200pcs/h
  Frame size: 880×880mm²
  Weight: 3500kg
  Read more
2. JB-1050AG Screen Printing Equipment
  Printing speed: 800-4000pcs/h
  Power: 11.3Kw
  Total weight: 6500kg
  Read more

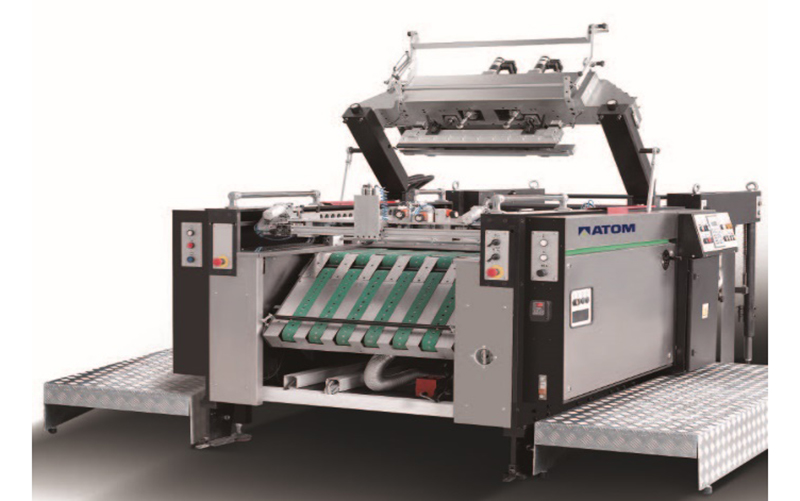

2. JB-106A Automatic servo control screen printing press
  Printing speed: 800-5000pcs/h
  Frame size: 1300×1170mm²
  Total weight: 4600kg
  Read more
2. TC-72 Automatic Stop Cylinder Screen Printing Press
  Printing speed: 400-2400pcs/h
  Frame size: 900×920mm²
  Weight: 3550kg
  Read more

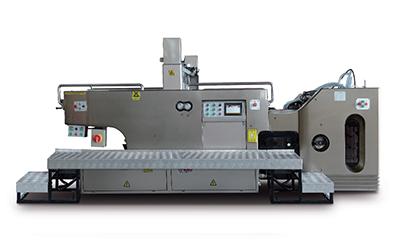

Fully AutomaticCylinder Screen Printing Machine

2. The full automatic cylinder screen printing machine integrates high precision, high quality and high efficiency, particularly suitable for continuous, large-batch, high precision screen printing.
  - Max. printing speed: 1000-3600pcs/h
  - Weight: 3500kg
  - Installed power: 6.93kW
  - Outline size: 3140×1960×1510mm³
  Read more

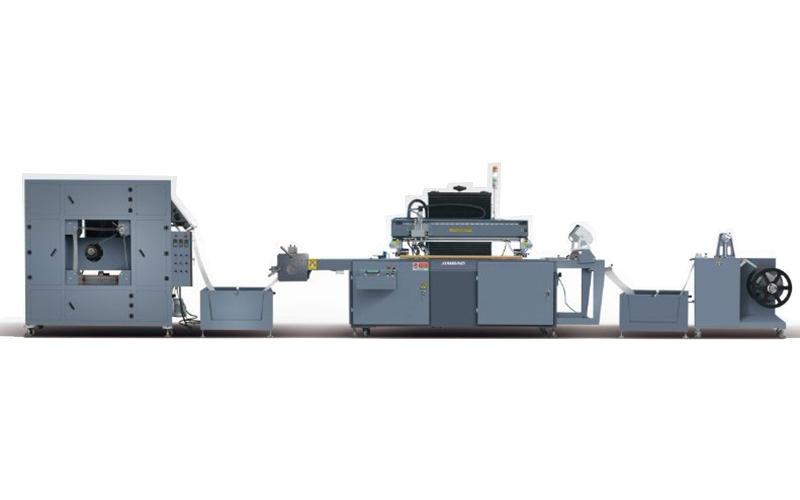

Fully AutomaticRoll to Roll Screen Printing Press

2. Fully automatic roll to roll screen printing press has functions of automatic feeding, fix-length pulling, and automatic winding.
  - Printing speed: 1800pcs/h
  - Printing power supply: 3P 380V 50Hz, 2.7 Kw
  - Drying power supply: 3P 380V 50Hz, 13 Kw
  - Gas supply: 5-7Kgs/cm²
  Read more

Selection Guide

● standard configuration, 〇 optional, - unachievable

Component or function	JB-720A/800A	JB-1020A	JB-1050A	JB-720AG	JB-720/780	JB-1020	JB-1050	Remarks
Stop cylinder	●	●	●	●	-	-	-
Swing cylinder	-	-	-	-	〇	●	●
Max. running speed	3600/3300	3000	4000	2200	3600/3300	3000	3000
No-stop print feeder system	-	●	●	-	-	-	●	①
Front pick up feeder	〇	〇	-	●	〇	-	-	②
Dust removing devices	〇	〇	〇	〇	〇	〇	〇
Anti-static devices	〇	〇	〇	●	〇	〇	〇	③
Double sheet detector	●	●	●	〇	〇	●	●

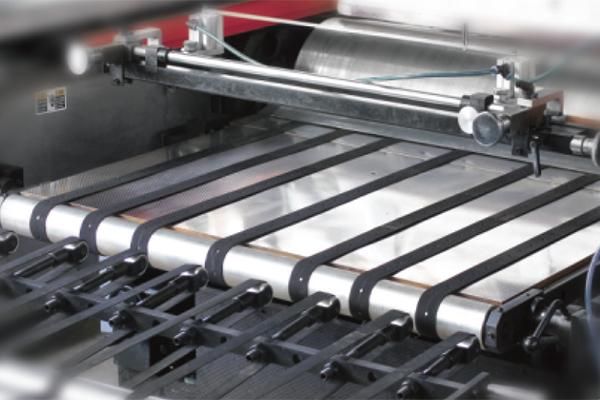

Brush wheel and rubber wheel conveying device	●	●	●	●	〇	〇	〇

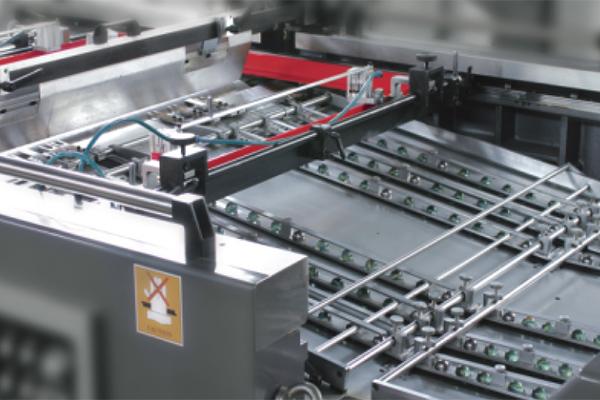

Vacuum conveying system	●	●	●	●	〇	〇	〇
Pull/push convertible side lays	●	●	●	●	●	●	●
Side lays optoelectronic sensors	●	●	●	●	〇	〇	〇
Cylinder built-in front lay optoelectronic sensor (Gripper optoelectronic sensor)	●	●	●	●	-	-	〇	④
Small sheet conveying device	〇	〇	〇	〇	〇	〇	〇	⑤
Squeegee printing pressure kept device	●	●	●	●	〇	〇	●
Ink dropping pan	〇	●	●	〇	-	-	〇
Screen frame pneumatic lock clamp	●	●	●	●	〇	●	●
Thick sheet anti-rebound device	●	●	●	〇	〇	●	●
Delivery board lowering system	●	●	●	●	〇	●	●
Automatic lubrication system	●	●	●	●	〇	●	●
Screen frame taken out system	〇	●	●	〇	-	-	-
Crossover delivery stand	●	●	●	〇	●	●	●	⑥
Touch screen with man-machine interface	●	●	●	●	〇	〇	〇
Safety light curtain	〇	〇	〇	〇	〇	〇	〇	⑦
Backer vacuum pump	〇	〇	〇	〇	〇	〇	〇	⑧

Note: partial optional functions or parts require extra charges. If need to, please state it in advance.

Please order matched curing and delivery system as best as you can.
Standard feeder configuration: rear pick up
Feeder uses ion blowing to facilitate to convey electrostatic materials.
Standard configuration includes two groups and can be increased.
Can convey paper smaller than the minimum specification.
Crossover delivery stand
Light curtain can increase safety factor and protect the personal safety of operators.
Contains a feeder and two cylinders.
