JB-1050AG

Screen Printing Equipment

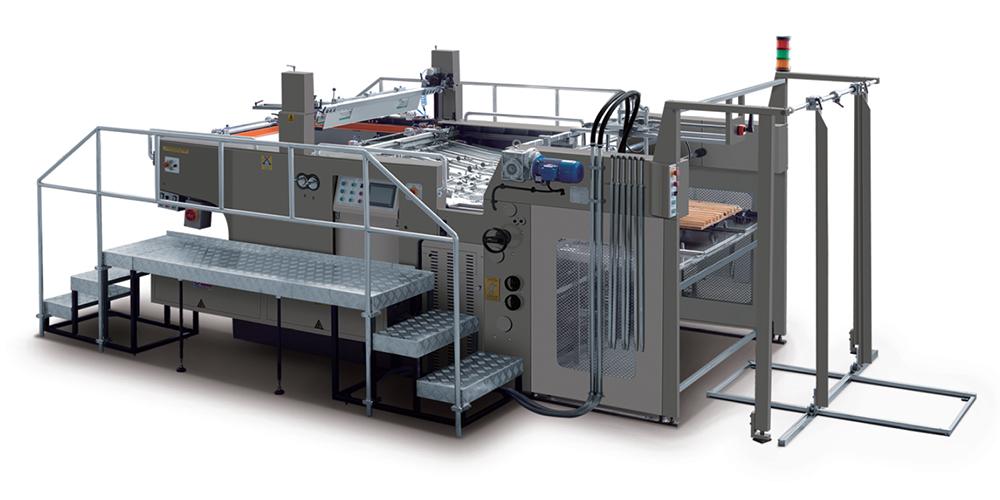

JB-1050AG Screen Printing Equipment
Request a Quote
Recommended application

The JB-1050AG screen printing equipment is independently designed and produced by our company after absorbing the mature offset printing technology, mainly aiming at screen printing in paper packaging field, as well as ceramic and glass decorative papers, signage, electronics, advertisements printing and garment heat transfer printing.

It is designed with classic stop cylinder technology and a top running speed of 4000 sheets per hour. At the same time, innovatively employ the non-stop feeder and non-stop delivery technology to change the traditional operation mode that fully automatic screen printing machine must stop to feed and delivery, so as to avoid time wasting on feed and delivery. Accordingly, the printing utilization of the whole machine is increased by more than 30%.

In actual use, JB-1050AG screen printing equipment is generally used in conjunction with 1050XHG UV curing machine, 1050XHSL cooling unit and 1050SG paper stacker to constitute a more efficient screen printing line.

Technical parameters
Model JB-1050AG
Max. paper size 1050×750mm2
Mir paper size 560×350mm2
Max. printing area 1050×750mm2
Size of screen frame 1300×1170mm2
Max. pile height 900mm
Paper weight 90-420g/m2
Precision of overprint 0.10 mm
Paper margin Less than 10mm
Printing speed 800-4000pcs/h
Power 11.3Kw
Power Supply 3P~380V/50Hz
Total weight 6500kg
Overall dimension 6700×3060×2060mm3
Features
    1. Non-stop feeder
    2. Non-stop feeder

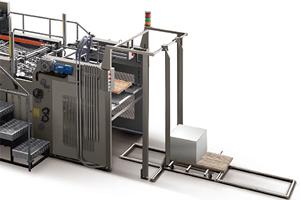

      The fully automatic non-stop feeder and pre-stacking trolley coordinating with non-stop main and sub feed programs can save work time and improve production efficiency by more than 30%. In addition, the height of the feeder has been increased to ensure the height of each loading.

    1. Offset print feeder head
    2. Offset print feeder head

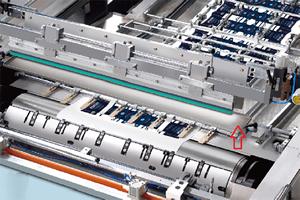

      The efficient feed head is equipped with 2 paper feed and 2 paper delivery suction nozzles, which is stable in performance and can separates sheets clearly, suitable for papers with different thicknesses. (It can be equipped with plasma blower to be adapted to papers with high static electricity content.)

    1. Delivery board with rice grain stainless steel plate
    2. Delivery board with rice grain stainless steel plate

      The surfaces of whole conveying board including feed board and delivery board are fitted with rice grain stainless steel plates, which can reduce 30%~70% friction force and surface abrasion to prolong the service life of the machine.

    1. Screen frame taken out device
    2. Screen frame taken out device

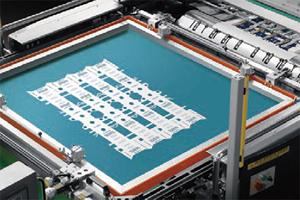

      The screen frame can be pulled out not only facilitating the register of substrates and the adjustment of feeding, but also making the cleaning of the cylinder and screen frame safer and faster. It is also equipped with ink dropping pan to prevent ink dropping and waste.

    1. Printing cylinder

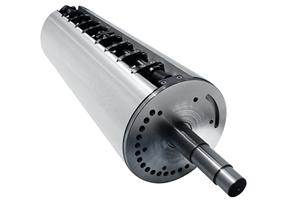

    2. Printing cylinder

      The weight of the printing cylinder is reduced by 28% while the strength and precision are higher, which significantly reduce the vibration during mechanics operation and improve the running stability, effectively extending the machine life.

    1. Pneumatic squeegee system with pressure kept device
    2. Pneumatic squeegee system with pressure kept device

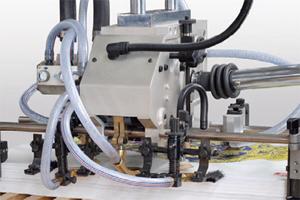

      The lifting and lowering of the squeegee and flood bar are controlled by cams and the pneumatic pressure kept device is equipped to guarantee uniform printing pressure so that both spot and coat can be accurately printed out.

    1. Pneumatic lift delivery board
    2. Pneumatic lift delivery board

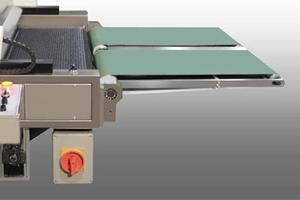

      In place of crossover delivery stand, it saves equipment occupying space. Double-wide-belt conveyor avoids the belt from tearing paper edges. With pneumatic control, it can be fold down to facilitate use.

    1. Mesh belt transition device
    2. Mesh belt transition device

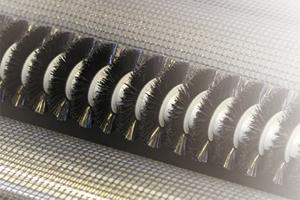

      The soft brush roller, arranged between multi sets of parallel mesh belts, runs in synchronization with mesh belts, which can effectively prevent substrates from being dropped so as to reduce waste.

Supporting equipment

1050AG screen printing equipment can be matched with UV curing machine, paper stacker and other auxiliary equipment to constitute an efficient screen printing line.

  • Supporting equipment
Matched snow ink UV curing machine
  • UV lamp cavity can be lifted up as a whole. Using this function before downtime can quickly lower the temperature of the lamp cover and save waiting time.
  • The lamp cover is made of mirror aluminum sheet by one-time rolling forming, featuring high reflectivity and energy saving. The surface of aluminum sheet is not easily scratched or oxidized, which ensures long term use of the lamp box.
  • Each group of lamp source is equipped with independent heat dissipation system that can effectively reduce the temperature inside the whole lamp casing.
  • Mesh belts of the UV curing machine are fitted with automatic correction device without need for frequent manual adjustment, which can prolong mesh belts' service life while facilitating use.
Model JB-1050XHG
Top speed 60m/min
UV power 7.2KW×1pcs×3choice
8.8kW×2pcs×3choice
Wrinkle lamp power 80W×3pcs×2choice
Effective solidity width 1100mm
Power of conveying motor 400W×2
Adsorb motor 1.1KW×2
Power of UV blower 0.55KW×3
Weight About 2300kg
Overall size 6080×1700×1700mm3
Matched cooling unit
Model JB-1050XHGSL
Max. speed 60m/min
Power of conveyor motor 200 W
Lowest temperature of cooling cavity 15°C
Power of water cooler 2.2KW(3HP)
Power of fan 1.1kw
Weight 730Kg+170Kg
Overall size 2100×2400×1580mm3
Matched paper stacker

The paper feeding part of the paper stacker has been redesigned, with paper receiving plate mounted below to realize non-stop delivery. Coordinated with master printing machine, it can realize non-stop operations of the whole machine, which saves work time. In addition, the paper stacker is possessed with online function that can remotely control the master printing machine, more convenient for operators to operate.

Model JB-1050SG
Max paper size 1100×750mm2
Min paper size 350×250mm2
Top pile height 950mm2
Top speed 4200pcs/h
Power 0.92KW
Power supply 3P~380V/50HZ
Total weight 700kg
Overall size 2700×2050×2750mm3
