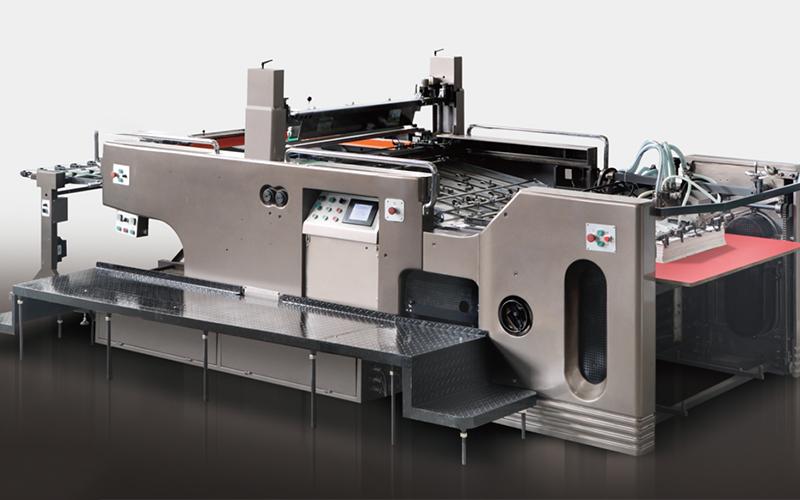

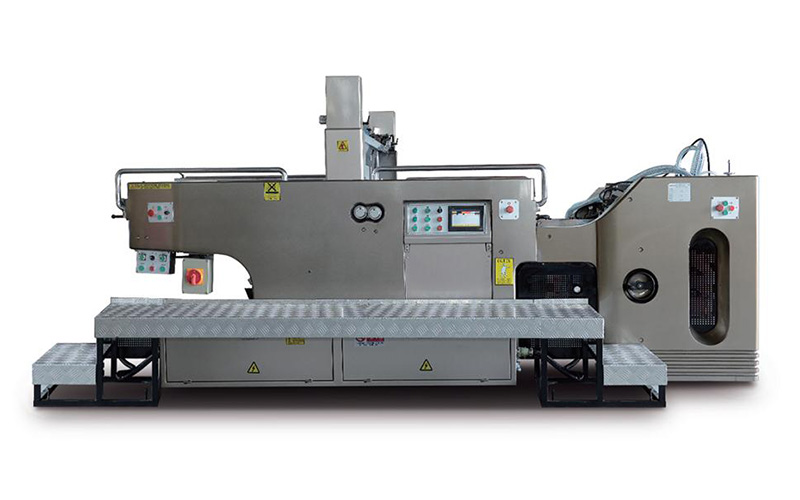

JB-1050A Full Automatic Stop Cylinder Screen Printing Machine

JB-1050A

Fully Automatic Stop Cylinder Screen Printing Machine

Request a Quote

Recommended application

The JB-1050A full automatic stop cylinder screen printing machine employs classic stop cylinder technology and is designed with a high running speed of 4000 sheets/h. The applicable printing substrates include ceramic and glass decorative paper, textile, paper, signboard etc., thus it can be widely applied to screen printing for advertising, packing, garment, electronics and many other industries.

If linked with a UV curing machine, rotary vane type screen printing dryer or infrared and ultraviolet dryer, as well as automatic paper stacker, a fully automatic screen printing line can be constituted to further improve the work efficiency.

Technical parameters

Max. paper size	1050×750mm²
Min. paper size	560×350mm²
Max. printing size	1050×750mm²
Size of screen frame	1300×1170mm²
Max. pile height	700mm
Paper weight	90-420g/m²
Border	Less than 10mm
Printing speed	800-4000pcs/h
Installed power	10.7KW
Power supply	3P, 380V, 50HZ
Total weight	5600kg
Overall size	4080×3020×1750mm³

Features

2. Classic stop cylinder mechanism
  The automatic stop cylinder ensures that the printing substrates can be conveyed to the gripper with extreme high accuracy and stability.
2. Transfer system

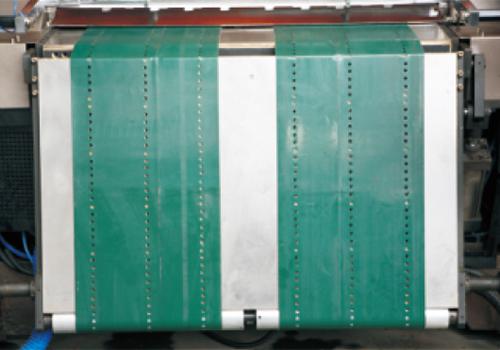

  The transfer system with adjustable vacuum antiskid absorption acts on the papers' non-printing surface significantly reducing rubbed scratched papers and enabling accurate stable paper feeding.
2. Squeegee system
  The squeegee pneumatic pressure kept device allows for constant printing pressure and uniform ink layer and clearer printing pattern.
2. Centralized lubrication system
  Automatic lubrication for main drive and main components effectively improves the use precision and extends the machine life.
1. Automatic alignment system

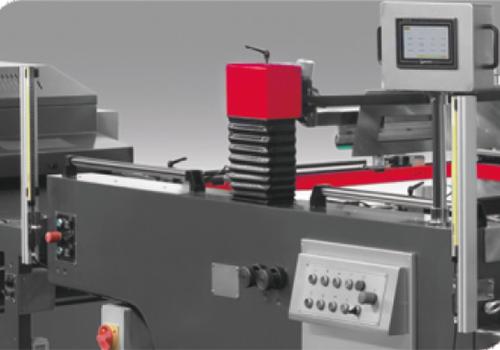

  The self-setting type CNC sensor registration system is also equipped on the screen printing machine. When the printing substrate arrives at the position of the front and side lays, it is registered through the detecting sensor. If any slight misplacement appears, it will automatically stop printing to guarantee high accuracy of overprint and thus effectively reduce the reject ratio.
1. Electrical control
  PLC centralized control of the operation of the whole machine. It is easy to operate with the touch screen and button dual operating system. Man-machine dialogue operating interface can display the equipment status and the cause of faults in real time.

Others

Delivery board
Optional safety light curtain

Samples
