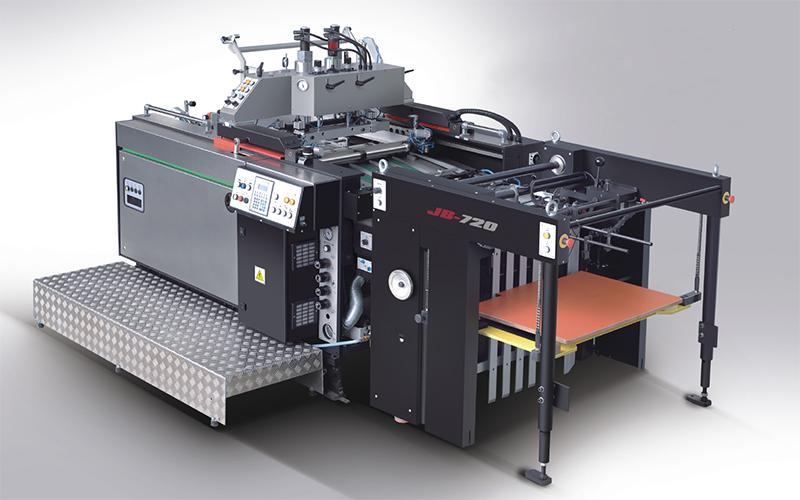

The JS-720 screen printing equipment is primarily applied for precision screen printing of membrane soft sheets, applicable materials including PET, PVC, PC, transfer paper, label paper, TMD, MEMBR ANE, panel label etc.
Accordingly, it has extensive application in industrial printing including electrical, electronic, appliances, automotive and many other industries.
|Max. substrate size||520×720 mm2|
|Min. substrate size||250×300 mm2|
|Frame size||900×920 mm2|
|Printing speed||400-2200 pcs/h|
|Gas specification||225L/min, 5-7Kgs/cm²|
|Overall size||3240×1300×1780 mm3|

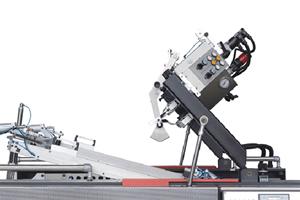

Open-type beveled screen frame lift system
The squeegee holder can be opened diagonally from the printing station to the position of installation and commissioning, facilitating to replace and clean the squeegee, add ink as well as clean the screen frame.
The screen and screen frame carrier can also be opened diagonally for easy cleaning of the screen, not requiring for repositioning after cleaning.

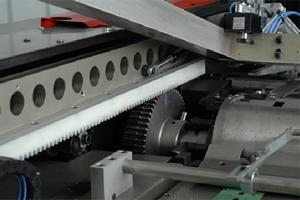

Screen and cylinder
Driven by nylon rack and steel gear coordination ensures no gap and vibration between the rack and the gear during operation, as well as guarantees accurate overprint, low abrasion, long service life of the equipment.

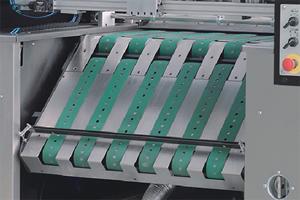

Substrate delivery system
The substrate delivery system guarantees smooth delivery of printing part output and of subsequent drying part input. It can be folded down as a whole to facilitate operations like cleaning the screen, mounting and dismounting the squeegee and flood bar.

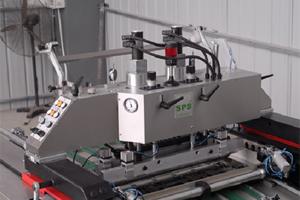

Heavy duty precision squeegee system
Integrated with a variety of advanced technologies such as electronics, pneumatics, mechanics, fiber optics, the knife pressure can be preset and the position be controlled. Once calibrated the squeegee pressure can be kept constant to precisely control the thickness of ink layer, so as to ensure the consistency of printed products.

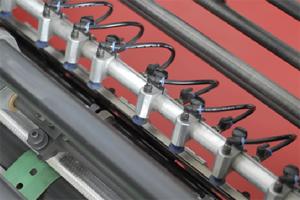

Front pick up feeder
The suction system on the front edge of the feeder avoids scratching the surface of the printing substrate on feeding. Accordingly, even for multicolor printing, the substrate's surface will have no scratches.

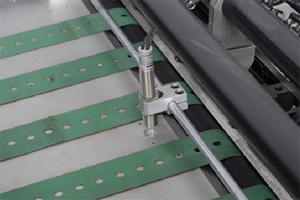

Optoelectronic double sheet detector
The detection is completed through the optoelectronic device without need to touch the substrate, which makes the screen printing machine more suitable for printing electrostatic, easily scratched substrates such as thin sheets and films.

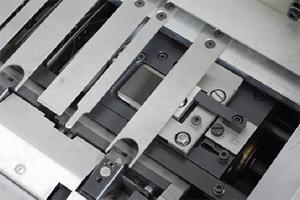

Vacuum side lays
Coordinate side lay fiber positioning to ensure accurate and reliable positioning of side lays while completely avoiding the marks left by pull/push side lays positioning.

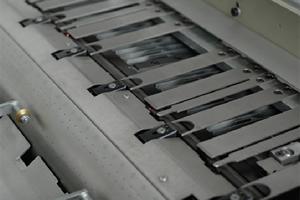

Unique cylinder groove design
It enables the adjustable mesh interval to be nearly zero and the screen deformation extremely small, ensuring the accuracy of printed patterns.
