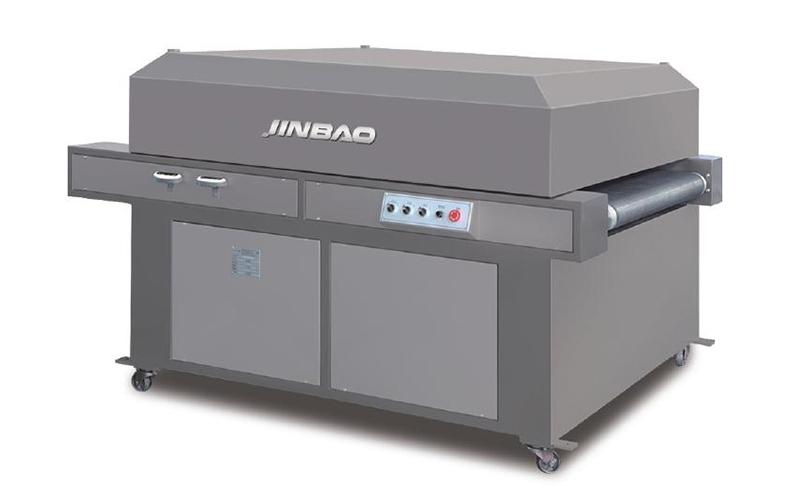

Cooling Unit

Cooling Unit
Overview

The cooling unit is used to cool the post-curing products. It can be used either independently, or part of a production line after drying or curing machines.

Request a Quote
Specification
Model JB-800SL JB-1050SL
Cool model Water cooling Water cooling
Top conveying speed 60m/min 60m/min
Power of convey motor 200W 200W
Lowest temperature of cooling cavity 15℃ 15℃
Cooler power 5HP 4.0kW water cooler 5HP 4.0kW Water cooler
Fan power 1.1kW 1.1kW
Weight 800kg 900kg
Overall dimension 2100×1950×1330mm³ 2100×2200×1330mm³
Feature
  • The cooling units do require external power, however, they are equipped with a variable frequency transmission device.
  • The fan blows cold air downwards at a high speed, which rapidly cools products and stabilizes movement of thin paper.
  • The cabinet's insulating layer reduces cool air loss and saves energy.
