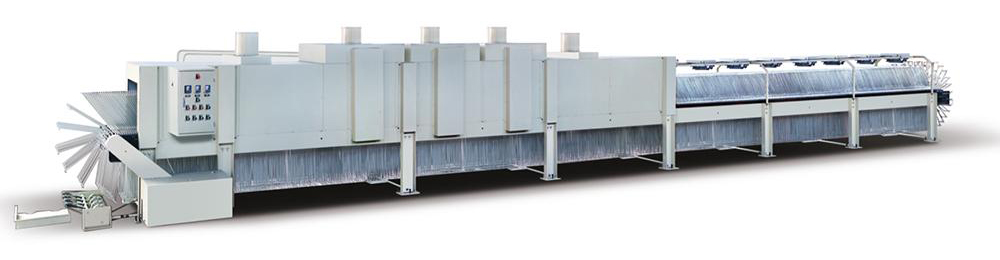

Screen Printing Ink Drying Machine

Screen Printing Ink Drying Machine
Application

Screen printing ink drying machines are specially used to dry ink and pigment in screen printing, and are often used together with screen printing machines in order to improve efficiency. Because screen printing ink drying machines are reliable, inexpensive and easy to maintain, they are widely used for ceramic tile patterns, lottery, and package printing.

Specification
Model JB-780Ⅲ JB-1020Ⅲ
Overall dimension 1830×1730×2350 mm³ 1350×2250×2590 mm³
Soaking Zone 8m 8m
Paper clip dimension 550×780mm² 750×1000mm²
Conveying speed 40pcs/min 40pcs/min
Temperature rise 50℃ 50℃
Power About 31kW About 31kW
Paper clip quantity 1346 953
Chain pitch 25.4mm 25.4mm
Weight About 6500kg About 6000kg
