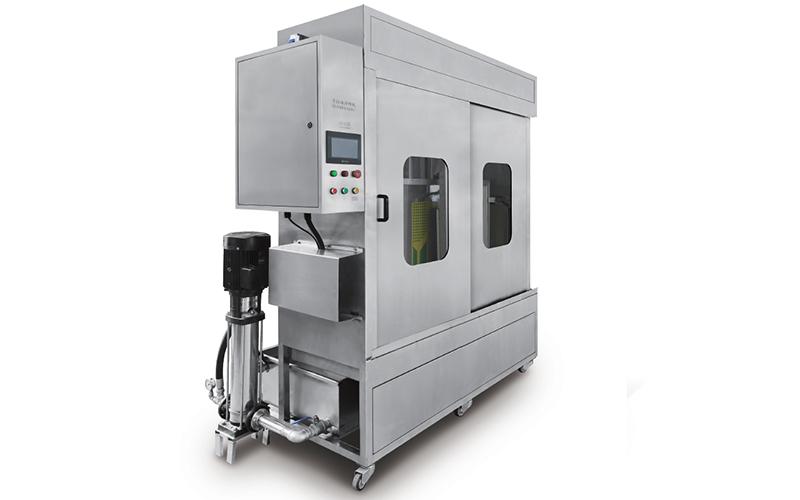

Automatic Decoating & Developing Machine

Automatic Decoating & Developing Machine
Application

The automatic de-coating & developing machine has two modes: screen de-coating and screen developing. Users can regulate the washing pressure, and the equipment is capable of cleaning a variety of screen printing plates, making it suitable for degreasing, developing, de-coating and water-based ink cleaning.

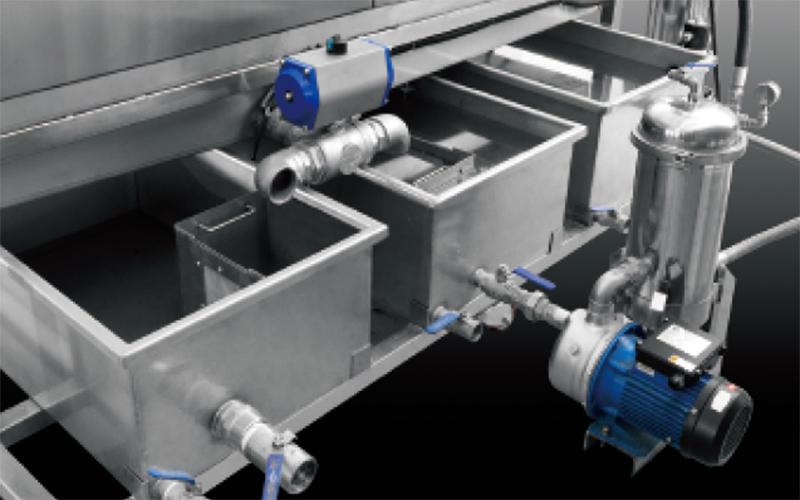

  • Filtration system Filtration system

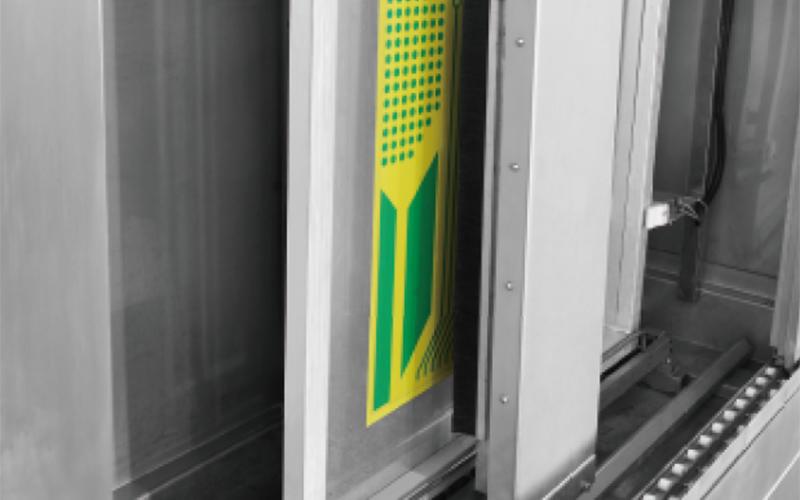

  • Screen developing section Screen developing section
Specification
Model TC-1300TX
Max. frame size 1170×1300mm²
Operation speed About 3min/pcs
Power 8kW
Power supply TN-S AC380V/50Hz
Air pressure 0.55-0.7MPa
Air consumption φ16mm, 500-800L/Min
Overall dimension 2140×1540×2450mm³
Contact us

For inquiries and support, connect with our team of experts. We’re here to assist you with all your screen printing needs.

Products List
  • Servo Driven Screen Printing Machine
    JB-145C Servo Screen Printing Press
    JB-106C Servo Screen Printing Press
    JB-78C Automatic Stop Cylinder Screen Printing Machine
    JB-54C Servo Screen Printing Press
  • Fully Automatic Screen Printing Machine
    Fully Automatic Stop Cylinder Screen Printing Machine
    Full Automatic Cylinder Screen Printing Machine
    Fully Automatic Roll to Roll Screen Printing Press
  • Semi-Automatic Screen Printing Machine
    Common Flat Screen Printing Machine
    Economical Microcomputer Flat Screen Printing Machine
    Horizontal Lift Screen Printing Machine
  • 3/4 Automatic Screen Printing Press
  • Varnishing and Stamping Machine
  • UV Curing Machine
    UV Curing Machine for Fully Automatic Printing Machine
    UV Curing Machine for Semi Automatic Printing Machine
  • Drying Equipment
    Infrared and Ultraviolet Dryer
    Screen Printing Ink Drying Machine
    Medium Wave Infrared Drying Machine
  • Automatic Paper Stacker
    JB-1050SG Automatic Paper Stacker
    Fully Automatic Paper Stacker
  • Screen Printing Plate Making Equipment
    TC-1300CTS Computer to Screen Plate Machine
    Computer-to-Plate Making Machine (Silk Screen Printing Version)
    Screen Stretching Machine
    Screen Coating Machine
    Printing Plate Exposure Machine
    Automatic Decoating & Developing Machine
    Drying Container
  • Automatic Shaped Window Patching Machine
  • Auxiliary Equipment
    Automatic Glitter Powder Machine
    Scraper and Muller Machine
    Cooling Unit
    800TJ Automatic Cold Foil Stamping Machine
    Screen Plate Washing Machine
    Screen Printing Drying Rack
    Aluminum Screen Printing Frame
Other Products
    1. Common Flat Screen Printing Machine
    2. Common Flat Screen Printing Machine Read more
    1. Varnishing and Stamping Machine
    2. Varnishing and Stamping Machine Read more

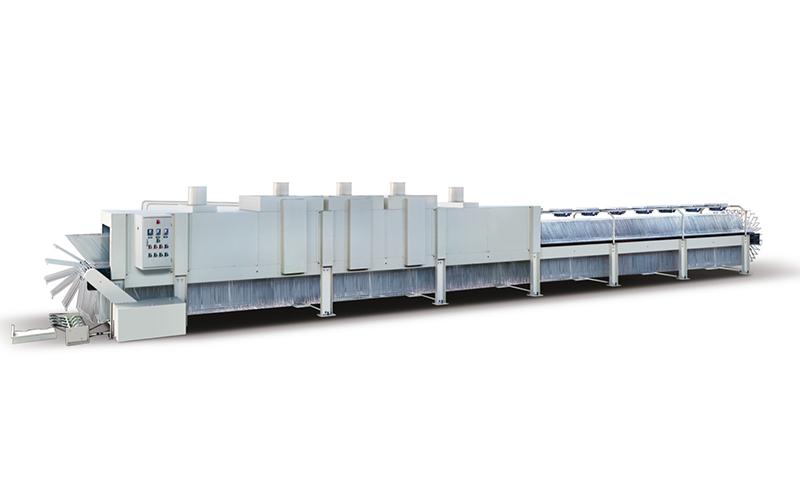

    1. Screen Printing Ink Drying Machine
