Automatic Shaped Window Patching Machine

Automatic Shaped Window Patching Machine
Overview

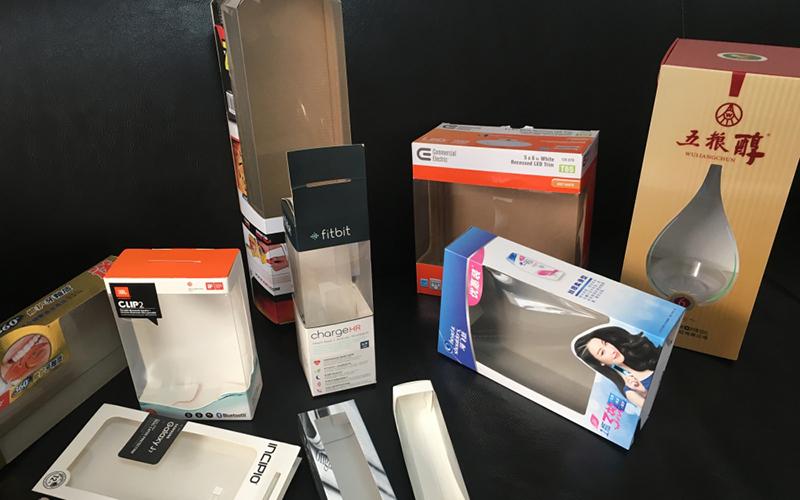

The JB-900TC automatic shaped window patching machine carries out SMC patching after corner cutting and groove punching. This equipment is often used for window patching in various cartons after shaping and punching. It can simultaneously patch multiple parallel films, and is an ideal choice for packaging toys, cosmetics, alcohol and much more.

Request a Quote
Automatic Shaped Window Patching Machine
Features
  • The screen printing gluing ensures the glue layer is thick and even.
  • The feeding part is driven by a servo motor that achieves high precision patching through 3 point positioning.
Specification
Model JB-900TC
Operation speed 500-2200pcs/h
Max. base paper size 900×500mm²
Min. base paper size 150×100mm²
Base thickness (paper card) 120-700g/cm²
Base thickness (corrugated paper) Within 5mm
Max. plastic film size 550×330mm²
Min. plastic film size 8×12mm²
Plastic film thickness 0.1-1.0mm²
Power 16.1kw
Power supply 3P, 380V/50Hz
weight About 2000kg
Dimension
Feeding part 1450×1620×1386mm³
printing part 2610×1860×1375mm³
patching part 1530×1620×1855mm³
pressing part 1585×1330×990mm³
pressing part 1585×1330×790mm³
overall dimension 9074×2349×1855mm³
Contact us

For inquiries and support, connect with our team of experts. We’re here to assist you with all your screen printing needs.

Products List
  • Servo Driven Screen Printing Machine
    JB-145C Servo Screen Printing Press
    JB-106C Servo Screen Printing Press
    JB-78C Automatic Stop Cylinder Screen Printing Machine
    JB-54C Servo Screen Printing Press
  • Fully Automatic Screen Printing Machine
    Fully Automatic Stop Cylinder Screen Printing Machine
    Full Automatic Cylinder Screen Printing Machine
    Fully Automatic Roll to Roll Screen Printing Press
  • Semi-Automatic Screen Printing Machine
    Common Flat Screen Printing Machine
    Economical Microcomputer Flat Screen Printing Machine
    Horizontal Lift Screen Printing Machine
  • 3/4 Automatic Screen Printing Press
  • Varnishing and Stamping Machine
  • UV Curing Machine
    UV Curing Machine for Fully Automatic Printing Machine
    UV Curing Machine for Semi Automatic Printing Machine
  • Drying Equipment
    Infrared and Ultraviolet Dryer
    Screen Printing Ink Drying Machine
    Medium Wave Infrared Drying Machine
  • Automatic Paper Stacker
    JB-1050SG Automatic Paper Stacker
    Fully Automatic Paper Stacker
  • Screen Printing Plate Making Equipment
    TC-1300CTS Computer to Screen Plate Machine
    Computer-to-Plate Making Machine (Silk Screen Printing Version)
    Screen Stretching Machine
    Screen Coating Machine
    Printing Plate Exposure Machine
    Automatic Decoating & Developing Machine
    Drying Container
  • Automatic Shaped Window Patching Machine
  • Auxiliary Equipment
    Automatic Glitter Powder Machine
    Scraper and Muller Machine
    Cooling Unit
    800TJ Automatic Cold Foil Stamping Machine
    Screen Plate Washing Machine
    Screen Printing Drying Rack
    Aluminum Screen Printing Frame
Other Products

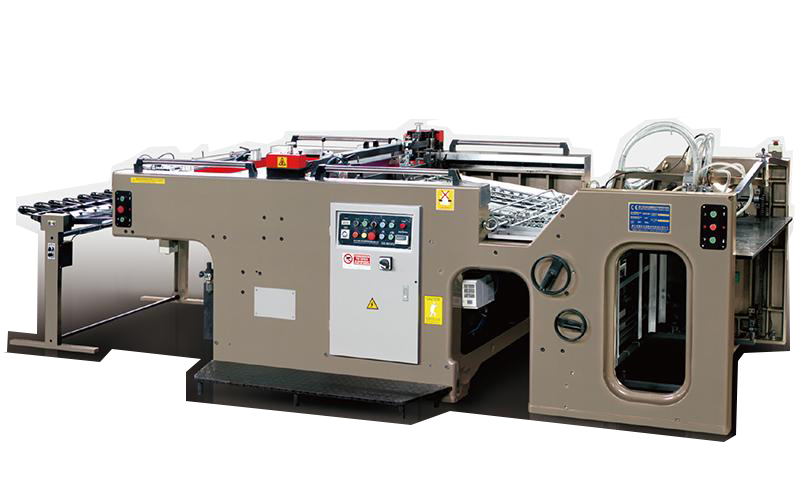

    1. Full Automatic Cylinder Screen Printing Machine
    2. Full Automatic Cylinder Screen Printing Machine Read more

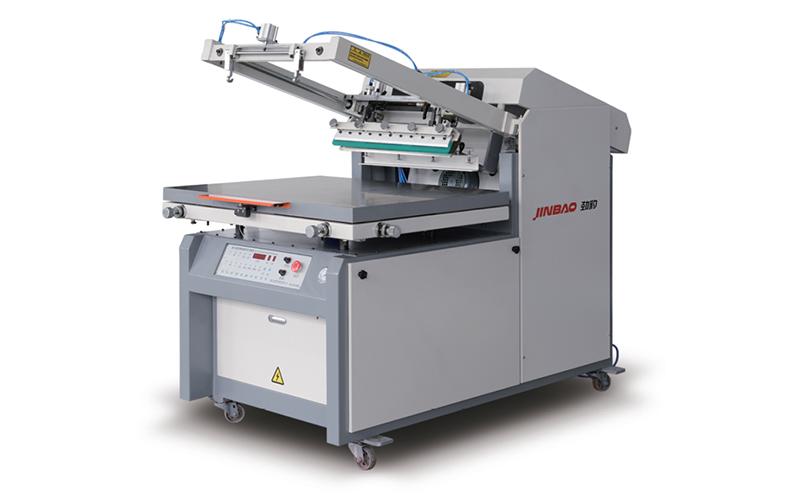

    1. Common Flat Screen Printing Machine
