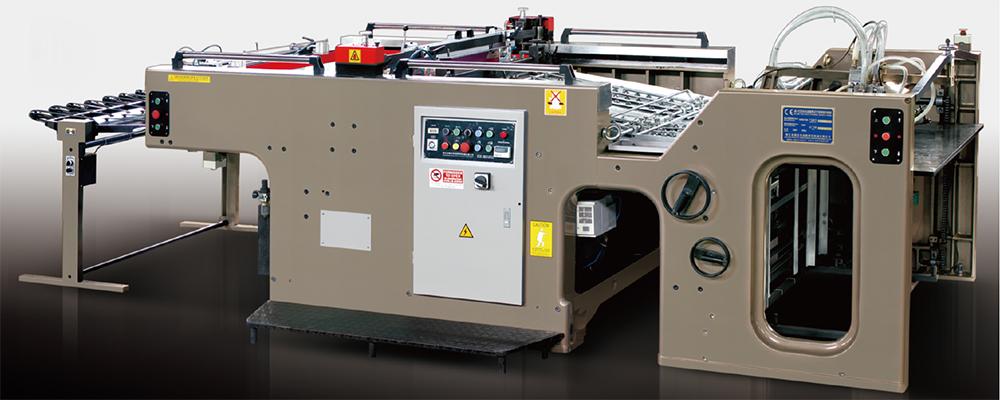

Full Automatic Cylinder Screen Printing Machine

Full Automatic Cylinder Screen Printing Machine
Recommended application

The full automatic cylinder screen printing machine integrates high precision, high quality and high efficiency, particularly suitable for continuous, large-batch, high precision screen printing.

It has extensive printing range, applicable to a variety of materials with a thickness of ranging from 120g/m²to 400g/m2. The common applications include:

Paper products: screen printing of cigarette cases, wine boxes, cosmetic boxes, gift boxes, trademarks, as well as of other paper product packaging and special anti-counterfeiting materials.

Decorative papers: screen printing of materials such as ceramic and glass decals

Soft plastics: heat transfer printing of thin films, dial panels, PVC magnetic cards, PVC self-adhesives, PET, etc., or special printing of PP, OPP, PET and other materials.

Technical parameters
Model JB-720 JB-780 JB-1020
Max. paper size 720×500mm2 780×520mm2 1020×720mm2
Min. paper size 350×270mm2 350×270mm2 560×350mm2
Max. printing size 720×500mm2 780×520mm2 1020×700mm2
Border Less than 15mm Less than 15mm Less than 15mm
Paper thickness 108-400g/m2 108-400g/m2 120-400g/m2
Size of screen frame 880×880mm 940×940mm 1280×1140mm
Max. printing speed 1000-3600pcs/h 1000-3300pcs/h 1000-3000pcs/h
Weight 3500kg 3800kg 4900kg
Installed power 6.93kW 6.93kW 11.09kW
Outline size 3140×1960×1510mm3 3140×1960×1510mm3 3670×2570×1540mm3
Features
  • High efficiency: JB-720/780/1020 full automatic cylinder screen printing machines are twice more efficient than flat screen printing machines.
  • High precision: generally, it has a overprint precision of less than 0.1mm.
  • High quality: it employs linear contact method, coordinated with printing dot to ensure higher printing quality.
Samples
  • Full Automatic Cylinder Screen Printing Machine
  • Full Automatic Cylinder Screen Printing Machine
  • Full Automatic Cylinder Screen Printing Machine
  • Full Automatic Cylinder Screen Printing Machine
