JB-78C

Servo Screen Printing Press

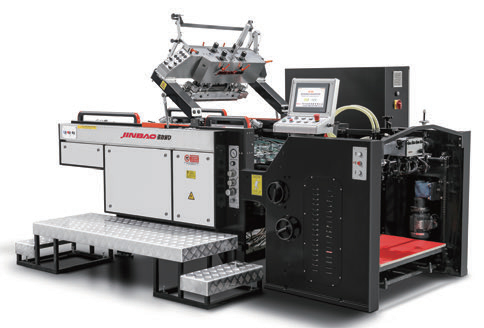

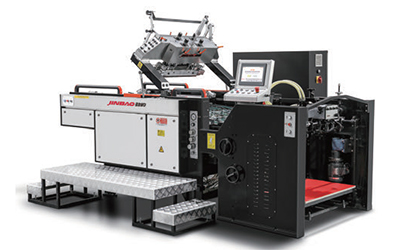

JB-78C Automatic Stop Cylinder Screen Printing Machine
  • JB-78C Automatic Stop Cylinder Screen Printing Machine
  • JB-78C Automatic Stop Cylinder Screen Printing Machine
  • Request a Quote

    JB-78C automatic stop screen printing machine (servo version) under the premise of ensuring the quality of printed products, the full-size printing speed can reach 4200 sheets/hour. If you choose to print personalized products, the speed can reach 4500 pieces/hour. It is the best choice for shops in industries such as paper-plastic packaging, ceramic glass stickers, textiles, plastic film switches, and electronic and electrical related components.

    This machine abandons the traditional single power source consisting of transmission shaft, gearbox, chain and crank, and instead drives the four moving bodies, conveyor, roller and net frame of the feeder. Three servo motors are used to drive the paper feeding drive, roller and frame respectively.

    Through automatic control, the synchronization of multiple functional units is guaranteed, which not only saves a large number of mechanical transmission parts, but also greatly improves the rigidity of the printing machine, reduces the error caused by the mechanical transmission device, and improves the printing quality. Quality and mechanical efficiency, increasing the automation level of the production process and improving the working environment conditions.

    • JB-78C Automatic Stop Cylinder Screen Printing Machine
    • JB-78C Automatic Stop Cylinder Screen Printing Machine
    • JB-78C Automatic Stop Cylinder Screen Printing Machine
    • JB-78C Automatic Stop Cylinder Screen Printing Machine
    Application

    Automatic stop screen printing machine is used for high precision screen printing of flexible sheet material, such as PET, PVC, PC, transfer paper, label paper, LMD, MEMBRANE, electronic switch, meter panel sticker etc.

    For screen printing on sheet material, the machine with several innovative design, such as front pick feeder, anti-static, ultrasonic inspecting, perfectly solve the problems offering adhesion and scratch; anti-static feeding units, vacuum conveyor to solve the transmission scratches, and easy to adjust; stop cylinder, front-lay and side-lay sensors to ensure the position accuracy; pneumatic blade system make the main structure simple, easy to operate and low cost of maintain; various improvements to ensure that the machine can be the perfect screen printing on substrates with 0.05-0.08mm thickness, printing precision can reach 0.03mm and can get high precision after 10times overprint.

    Technical parameters
    Max. sheet size 780 X520mm
    Min. sheet size 350 X270mm
    Max. printing size 780 X520mm
    Size of screen frame 940X940mm
    Paper weight 90~420g/m²
    Precision of overprint 0.10 mm
    Paper margin ≤10mm
    Printing speed 500-4500PCS/h
    Power supply specification 3P 380V 50Hz 17Kw
    Total weight 3300kg
    Overall dimension 3.23X2.64X1.7M
    Features
      1. Super-precision pneumatic squeegee system
      2. Super-precision pneumatic squeegee system

        A heavy-duty precision squeegee system integrates various advanced technologies such as electronic, pneumatic, hydraulic, mechanical, and optical fibers. It allows presetting of blade pressure, controlling blade position. Once the squeegee pressure is calibrated, it can be preset to remain constant, ensuring precise control of ink layer thickness and guaranteeing consistent perfection in printed products.

      1. Detachable screen frame structure
      2. Detachable screen frame structure

        The screen frame can be detached and pulled out from the transmission part, making it convenient to adjust the registration of the printed matter and the feeding, safer and efficient cleaning of the roller and mesh frame. The automatic detection system of the electric eye ensures the reliability of the operation, avoiding the breakage of the rack or damage to the main transmission.

      1. Pneumatic side-lay
      2. Pneumatic side-lay

        The biggest advantage of this side-lay is that the contact area of the paper by the micro-hole suction plate is larger, unlike the ball-pulling gauge where the force is concentrated at one point when pulling the paper, avoiding the problems of white marks and dirt marks on both sides of the printed substrates caused by the ball-pulling gauge in the past. Additionally, it can detect and inform if the pulling is not in place, making the operation more convenient.

      1. Servo motor
      2. Servo motor

        The servo motor offers high transmission accuracy, simplified structure, wide range of transmission ratio, convenient adjustment, etc.

      1. Nylon rack
      2. Nylon rack

        The screen frame and the roller move in synchronization, driven by the combination of nylon rack and steel gear. This ensures that there is no backlash or vibration between the gear and the rack during operation, as well as accurate registration, low wear, and extended equipment life service.

      1. German RKS high-tech precision carbon fiber squeegee
      2. German RKS high-tech precision carbon fiber squeegee

        This squeegee offers extraordinary standardization of printing quality, capable of reproducing the required quality consistently, with optimal blade flatness ensuring stable ink layers, quick setup, excellent solvent resistance and wear resistance, prolonging the life service of the squeegee and consumables.
