Fully Automatic Precision Exposure Machine

Fully Automatic Precision Exposure Machine
Application

Equipped with 3KW air-cooled UV lamps, Jinbao's JB-1213S II fully automatic precision exposure machine is used to conduct exposure printing of high-precision lines and dots, as well as screens with high-density meshes, such as PCB or screen printing.

As a fully automatic machine, the exposure machine will automatically finish exposure, extraction and exhaust without any intervention, making it both convenient and efficient.

Request a Quote
Specification
Model JB-1213S II
Max. frame dimension 1200×1300mm²
Air extraction speed 1L/S
Vacuum degree 0-600 mmHG
Light power 3kW
Weight(about) 300 Kg
Overall dimension 1650×1600×1350mm³

Note: Customization is available.

Feature
  • Light intensity control device
    The accurate light intensity control device ensures the exposure precision and avoids exposure defects such as mesh error and underexposure caused by voltage shortage, aged lamps and unstable lamp start-up.
  • Reflector
    When placed at the best angle, the reflector ensures an even exposure intensity.
  • Micro-computer
    The exposure machine is controlled using a micro-computer, which can store multiple back-up memory modes for user convenience.
Related Products
  • Fully Automatic Precision Exposure Machine

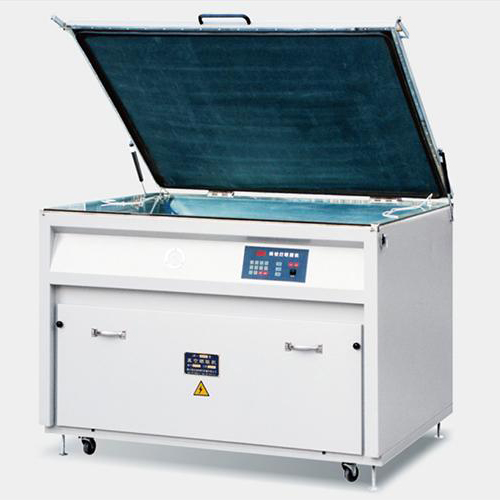

  • Vacuum Printing Plate Exposure Machine
Contact us

For inquiries and support, connect with our team of experts. We’re here to assist you with all your screen printing needs.

Products List
  • Servo Driven Screen Printing Machine
    JB-145C Servo Screen Printing Press
    JB-106C Servo Screen Printing Press
    JB-78C Automatic Stop Cylinder Screen Printing Machine
    JB-54C Servo Screen Printing Press
  • Fully Automatic Screen Printing Machine
    Fully Automatic Stop Cylinder Screen Printing Machine
    Full Automatic Cylinder Screen Printing Machine
    Fully Automatic Roll to Roll Screen Printing Press
  • Semi-Automatic Screen Printing Machine
    Common Flat Screen Printing Machine
    Economical Microcomputer Flat Screen Printing Machine
    Horizontal Lift Screen Printing Machine
  • 3/4 Automatic Screen Printing Press
  • Varnishing and Stamping Machine
  • UV Curing Machine
    UV Curing Machine for Fully Automatic Printing Machine
    UV Curing Machine for Semi Automatic Printing Machine
  • Drying Equipment
    Infrared and Ultraviolet Dryer
    Screen Printing Ink Drying Machine
    Medium Wave Infrared Drying Machine
  • Automatic Paper Stacker
    JB-1050SG Automatic Paper Stacker
    Fully Automatic Paper Stacker
  • Screen Printing Plate Making Equipment
    TC-1300CTS Computer to Screen Plate Machine
    Computer-to-Plate Making Machine (Silk Screen Printing Version)
    Screen Stretching Machine
    Screen Coating Machine
    Printing Plate Exposure Machine

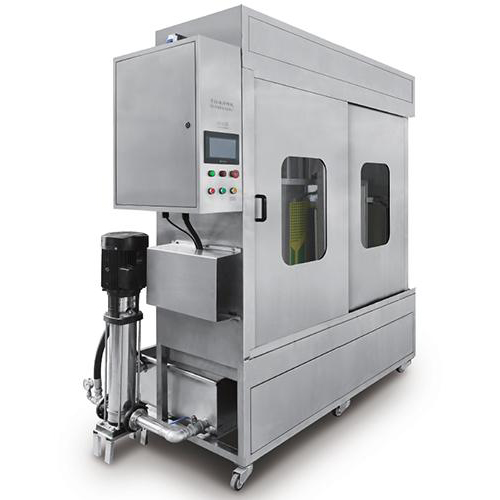

    Automatic Decoating & Developing Machine

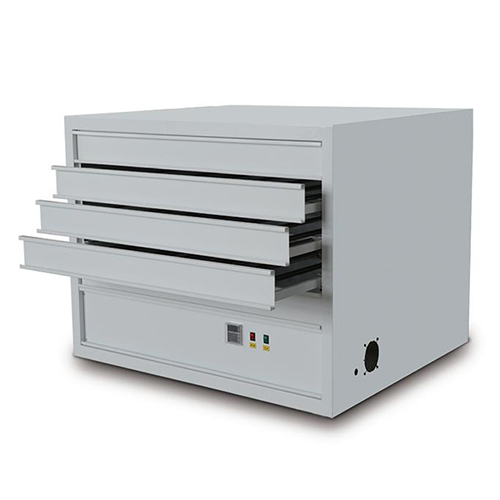

    Drying Container
