Fully Automatic Stop Cylinder Screen Printing Machine

JB-720A/800A/1020A

Fully Automatic Stop Cylinder Screen Printing Machine

Request a Quote

Recommended application

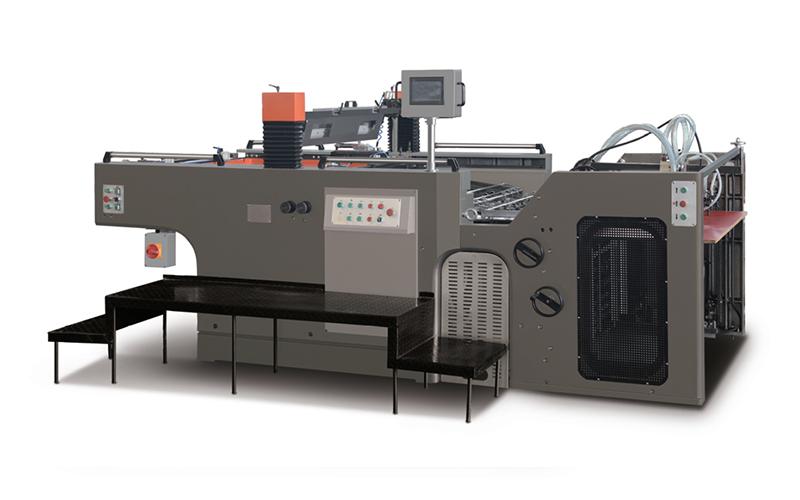

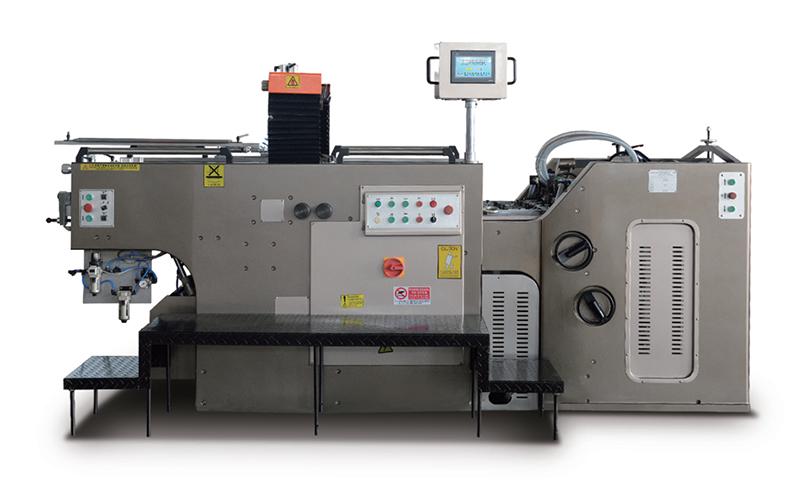

JB-720A/800A/1020A fully automatic stop cylinder screen printing machines are designed with classic stop cylinder technology, featuring 3600pcs/h printing speed, accurate sheet positioning, high printing precision and low noise. They are suitable for the screen printing of ceramic and glass decals, advertising, package printing, labels, textile transfer, special process and many other industries.

With classic stop cylinder technology, if these machines are linked with rotary vane type screen printing dryer or infrared and ultraviolet dryer, UV curing machine and fully automatic paper stacker, a full automatic screen printing line can be used to enhance the working efficiency.

Technical parameters

Model	JB-720A	JB-800A	JB-1020A
Max. paper size	720×500mm²	800×590 mm²	1020×720 mm²
Min. paper size	350×270mm²	350×270 mm²	560×350 mm²
Max. printing size	720×500 mm²	800×590 mm²	1020×710 mm²
Paper thickness	108-400g/m²	108-400g/m²	108-400g/m²
Size of screen size	880×880 mm²	1070×1070 mm²	1140×1280mm²
Border	Less than 10mm	Less than 10mm	Less than 10mm
Printing speed	1000-3600pcs/h	1000-3300pcs/h	1000-3000pcs/h
Power supply	3P, 380V/50HZ	3P, 380V/50HZ	3P, 380V/50HZ
Installed power	10.5KW	10.5KW	14.64KW
Total weight	3500kg	4000kg	5500kg
Outline size(L×W×H)	3300×2450×1690mm³	3480×2580×1690mm³	4150×2840×1700mm³

Features

2. Stop cylinder mechanism
  The automatic stop cylinder guarantees that the front end of the printing substrates can be conveyed to the gripper with extreme high accuracy. Meanwhile, the gripper and side lays are both equipped with detecting sensor to monitor the location of the printing substrates, which effectively minimizes the reject rate of printing.
2. Transfer system
  The vacuum absorption device under the feed board coordinates with the paper stacking and pressing structure guaranteeing smooth delivery of a variety of printing substrates.
2. Squeegee system
  Two cams control the actions of the squeegee and flood bar respectively. The squeegee is equipped with a pneumatic pressure kept device, allowing for clearer printing image and more uniform ink layer.
2. Centralized lubrication system
  Automatic lubrication for main transmission and main parts effectively enhance the use precision and prolongs the machine's life.
1. Screen structure
  The screen frame can be pulled out not only facilitating the registration of substrates and the adjustment of feeding, but also making the cleaning of the cylinder and screen frame safer and faster. It is assembled with an ink dropping pan to prevent ink from spilling and being wasted.
1. Electrical control
  PLC centralized control of the operation of the whole machine, standard configuration of touch screen and button dual operating system, provide simple operation and high degree of automation.
