Mechanical Net Puller / Screen Stretcher

Mechanical Net Puller / Screen Stretcher

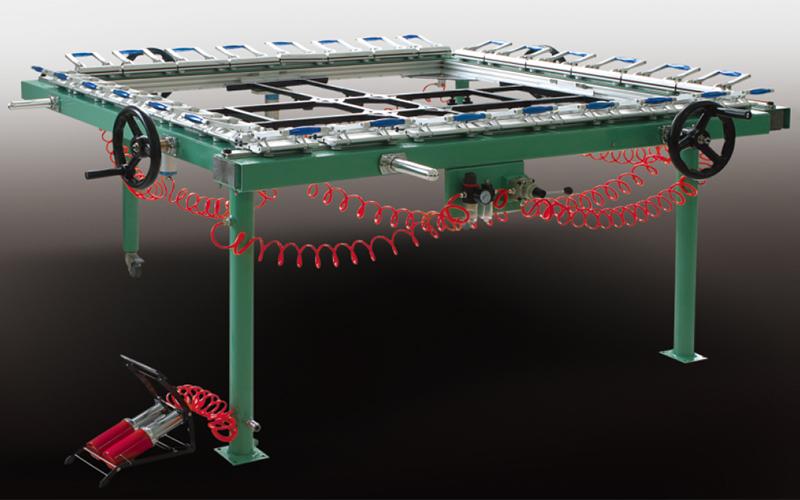

  • Mechanical Net Puller / Screen Stretcher

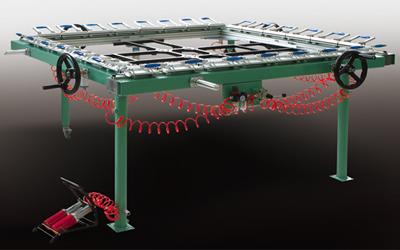

  • Mechanical Net Puller / Screen Stretcher
  • Application

    With high and stable, even tensions, the mechanical net puller/ screen stretcher is able to be adjustably regulated in order to adjust to different screen printing specifications.

    Request a Quote
    Specification
    Model JB-1215B
    Max. net area 1200×1500mm²
    Working air pressure 0.4-0.7MPa
    Max. tension 40N/cm2
    Feature
    • The net puller collets and the framework are made of aluminum alloy, thereby preventing force deformation.
    • The collet uses a collet structure cocked by itself, which prevents slipping or loosening, even under high tension.
    • The push and puller leader makes it easier to regulate the net pulling area.
    • The net tightening systems come with pneumatic and manual types.
      a. Pneumatic type: The tension is more even and stable, preventing the screening from being torn apart.
      b. Manual type: The net tightening system can be slightly adjusted, thus flexibly controlling the tension.
    Related Products
    • Pneumatic Net Puller / Screen Stretcher
    • Mechanical Net Puller / Screen Stretcher
