JB Series UV Curing Machine

This product has been discontinued and removed from our shelves.

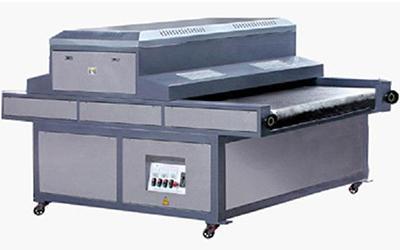

JB Series UV Curing Machine

Our JB series UV curing machine features triple UV light groups, Aluminum magnesium alloy chimney housing, Teflon convey belt, and double cooling system . User can stand upon the requests of the different media and ink to decide how many lights he need to open. The alloy metallic lamp housing can focus the UV rays. The Teflon belt can afford high temperature and intensive friction. The cooling system we applied can effectively prevent the ink layer on printing media from solidified. In addition, the convey belt can be variable speed adjustable and its highest speed can reach 44m/min.

Technical Parameters
Full automatic set* JB-780 JB-1020
Convey speed 44 m/min 44 m/min
UV light tube power 8 KW×3 8 KW×3
Efficient curing width 880 mm 1100 mm
Conveyer driver power 750 W 750W
Absorption fan power 0.75 KW×2 0.75 KW×2
Weight 650 kg 800 kg
Dimensions 3.5×1.2×1.2 m 3.5×1.45×1.2 m

As a China-based UV curing machine manufacturer and supplier, Jinbao also offers full automatic stop cylinder screen printing press, flat screen printing machine, screen printing ink drying machine, and fully automatic roll to roll screen printing press, among others.
