UV Photofixation Machine

This product has been discontinued and removed from our shelves.

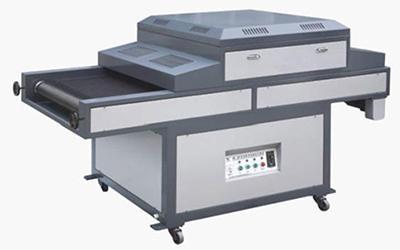

UV Photofixation Machine

Our JB-1000B UV photofixation machine has two units of UV light. The number of actually utilized lights can be decided as per the characteristics of printing media and ink. It is equipped with aluminum magnesium alloy housing which focuses the UV rays effectively. It has the Teflon convey belt which can afford high temperature and friction and user can stepless adjust the running speed of convey belt. The outstanding cooling system of our UV dryer can prevent the printing media from distortion.

Technical Parameters
Model JB-1000B UV photofixation machine
Constant temperature zone length/width 10 00/ 10 00 mm
Conveyor speed 0- 35 m/min
Constant temperature Constant temperature/150(250)
UV power 5.6 KW×2
Exhaust power 220 V
DC motor power 375 W
Overall dimension 2.2 × 1. 25 × 1.2 m
Weight 600 Kg

Jinbao is a specialized JB-1000B UV photofixation machine manufacturer and supplier in China. Our company offers a vast range of products, including aluminium net frame, fully automatic roll to roll screen printing press, and fully automatic paper stacker, among others.
