  3. Mini Electric Screen Printer

Mini Electric Screen Printer

This product has been discontinued and removed from our shelves.

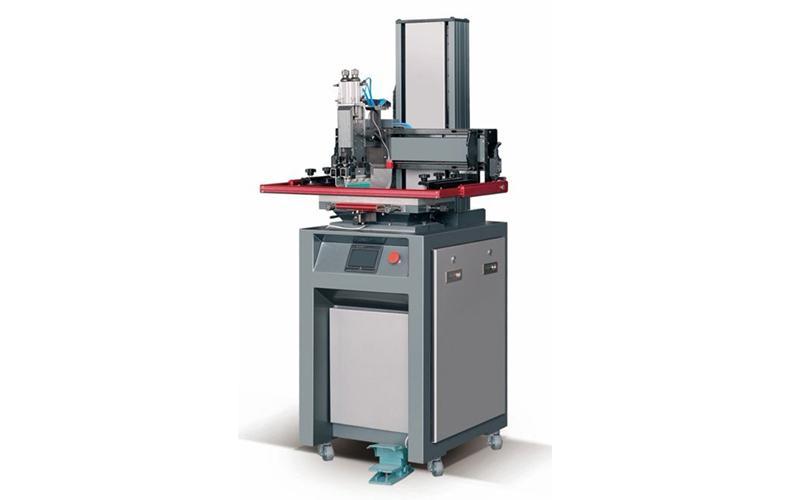

Mini Electric Screen Printer

Mini electric screen printer is used in the precision screen printing of small-size films, sheets and plates, such as FPC, IMD, membrane key, mobile phone glass, handheld computer glass, solar silicon chip, biological test piece, light casting meters, electronic components, CD, credit card, PCB, etc. Mini electric screen printer is mainly composed of a printing head, the THK guide rails, the touch screen control interface, and SMC pneumatic components.

Technical Parameters
Model JB-25CA JB-45CA
Max. printing size (mm) 200×250 300×450
Max. frame size (mm) 380×530 500×750
Min. frame size (mm) 240×350 250×550
Working table size (mm) 250×400 400×600
Capacity ( P/h ) 800 800
Printing blade speed
( mm/sec ) 		100-500 100-500
Frame height (mm) 20~30 20~30
Substrate thickness (mm) ~ 50 ~ 50
Frame rising height (mm) 300 300
Frame adjusting scope (mm) ±10 ±10
Power source 1P 220V 50/60Hz 0.83Kw 1P 220V 50/60Hz 0.83Kw
Air source 5-7 Kgs/cm2
0.52 L/cycle 		5-7 Kgs/cm2
0.52 L/cycle
Total weight 190 250
Overall dimension
( W×D×H mm ) 		690×630×1600 940×710×1620

Mini electric screen printer adopts high-precision printing table. The location of printing head in X and Y directions can be precisely adjusted by the micro-adjusting handle to ensure the accuracy of color register. The movement of printing head is driven by brushless DC motor and controlled by precision guide rails, with fast driving speed, smooth start, and stable torque, superior to servo motor driving.

Mini electric screen printer has stable and efficient transmission systems. The lifting and descending of the screen plate is driven by German SEW gear reducer motor combined with high-course transmission screw and encoder, featuring fast driving speed and high location precision. The slide seat adopts linear guide rail and one-piece aluminum alloy structure, improving working smoothness, precision, bearing capacity and durance and reducing noise. The screen carrier adopts active cantilevered design, easy to carry out displacement adjustment.

Mini electric screen printer adopts three-point assembly structure, avoiding air exhausting and oil combination. Its electric structure reduces air consumption. The air compressor can start at 1/2HP. The long-term use of this printer will save 30% cost on energy conversion. The whole machine is set and operated through digital HMI. The security is ensured by safety barrier and control interlock.

As a specialized mini electric screen printer manufacturer and supplier in China, Jinbao also provides vertical screen printing machine, full automatic cylinder screen printing press, and auxiliary equipment, among others.
